Copper clad aluminum wire (CCA) is a popular choice for electrical projects due to its cost efficiency and lightweight nature. It combines an aluminum core with a copper coating, making it a versatile option for various applications. This article will explain what CCA wire is, comparing it to solid copper wire, and explore its benefits, drawbacks, and best use cases to help you decide if it’s the right fit for your project.
Understanding Copper Clad Aluminum Wire

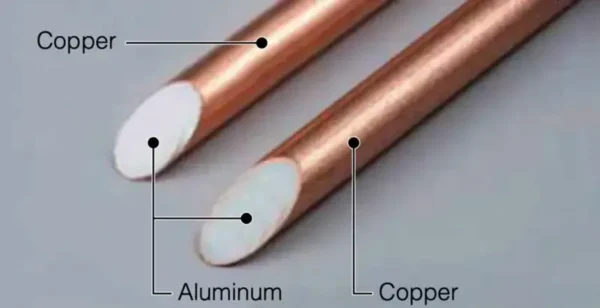

Copper Clad Aluminum (CCA) wire is a unique type of electrical conductor that marries the best of both worlds: an aluminum core wrapped in a thin layer of copper cladding. This ingenious combination leverages the excellent conductivity of copper while significantly reducing the weight and cost associated with pure copper wires. The production process involves wrapping copper around the aluminum core and then welding it to create a durable bond, ensuring that the benefits of both metals are harnessed effectively.
The primary materials used in CCA wire are copper and aluminum, each bringing distinct advantages to the table. Copper, known for its superior conductivity, forms the outer layer, enhancing the wire’s electrical performance.
Meanwhile, aluminum, renowned for its lightweight properties, constitutes the core, contributing to the wire’s overall ease of handling and cost-efficiency. This synergy results in a wire that not only performs well electrically but also offers practical benefits in terms of installation and material costs.
Comparing Copper Clad Aluminum to Solid Copper Wire
When comparing CCA wire to solid copper wire, several key differences emerge. Firstly, CCA wire provides a more cost-effective alternative, primarily because aluminum is cheaper than copper. This makes it an attractive choice for various electrical applications where budget constraints are a consideration. However, the mechanical strength of solid copper wire surpasses that of CCA wire. Pure copper wires exhibit superior mechanical strength and elongation, which translates to better durability and resistance to physical damage.
Another critical difference lies in their electrical performance. CCA wires tend to have higher DC resistance than solid copper wires, which can affect power consumption and efficiency. This higher resistance also means that CCA wires generate more heat when current flows through them. Despite this, at frequencies above 5 MHz, the performance of CCA and solid copper wires becomes comparable due to the skin effect, where the current tends to flow more on the surface of the conductor, making the copper layer in CCA wire more effective.
Finally, while solid copper wires are less fragile, CCA wires, with their aluminum core, can be more prone to physical damage due to aluminum’s lower tensile strength. This fragility necessitates careful handling and consideration during installation to avoid breakage and potential replacement costs over time.
Electrical Conductivity and Performance
Electrical conductivity is a critical factor in evaluating any wire. CCA wire exhibits lower electrical resistance compared to pure aluminum but higher than that of solid copper of the same dimensions. This higher resistance in CCA conductors results in reduced efficiency and increased heat generation when current flows through them. Consequently, devices powered by CCA wire may experience less voltage transmitted, which can sometimes lead to damage due to insufficient power.
The increased resistance and heat generation also raise the risk of malfunctions or even fire, necessitating careful consideration of CCA wire in high-power applications. However, there’s a silver lining: CCA wire performs well in high-frequency applications. Thanks to the skin effect, where high-frequency currents flow predominantly on the surface of the conductor, the copper layer in CCA wire enhances its conductivity at these frequencies. This makes CCA wire a viable option for applications involving high-frequency signals.
Despite these advantages, it’s important to note that CCA conductors exhibit higher signal attenuation compared to pure copper conductors. This means that over long distances, signals carried by CCA wire may weaken more than those carried by solid copper, potentially impacting performance in certain applications.
Installation Considerations for Copper Clad Aluminum Wire
Installing CCA wire requires specific considerations to ensure safety and performance. One of the key aspects is the use of appropriate connectors. Copperweld® connectors, for instance, are designed to ensure secure connections when working with CCA wire. It’s essential to use connectors rated for Cu/Al compatibility to avoid issues such as overheating or poor connectivity. For common circuits like 15-amp, a 12-gauge CCA wire is often recommended for safety and efficiency.
Another crucial factor is the proper gauge of the wire used. Using the correct gauge helps prevent overheating and potential fire risks, which are more pronounced with CCA wire due to its higher resistance. Fortunately, the lightweight nature of CCA wire makes it easier to transport and install, reducing the physical strain on installers and potentially lowering labor costs.
However, the soft nature of aluminum can lead to issues with connection reliability. Over time, the aluminum core can deform, leading to loose connections and potential safety hazards. Therefore, proper installation techniques and regular inspections are vital for maintaining the integrity of the electrical system using CCA wire.
Applications of Copper Clad Aluminum Wire
CCA wire is incredibly versatile, finding utility in a wide range of applications. In construction, it serves as a cost-effective alternative for electrical wiring in buildings, providing necessary conductivity while keeping expenses in check. It is also favored in high-frequency communication systems, where the skin effect enhances performance. Its lightweight nature makes it suitable for audio equipment like headphones and portable speakers, where reducing weight is crucial.
The automotive and aerospace industries also benefit from CCA wire. Here, the emphasis is on minimizing weight to improve fuel efficiency and performance. In residential, commercial, and industrial electrical projects, CCA wire balances cost and performance.
Its use in RF antennas and for distributing cable television signals underscores its versatility. CCA wire’s combination of affordability, lightweight properties, and adequate performance makes it an attractive option for various applications, proving it is more than just a budget-friendly alternative to solid copper wire.
Safety and Compliance
Safety and compliance are paramount when it comes to electrical wiring, and CCA wire does not disappoint. It has been recognized as a suitable alternative to copper and aluminum under National Electrical Code (NEC) regulations. Independent testing organizations have confirmed that CCA wire meets or surpasses safety standards for residential electrical systems. This is further supported by experienced electrical inspectors who report no significant failures or safety issues with CCA wiring in homes.
One of the advantages of CCA wire is its corrosion resistance, which enhances its durability and reduces maintenance concerns. The thin copper layer helps reduce the effects of oxidation, thereby maintaining good connectivity over time. Additionally, CCA wires demonstrate resistance to galvanic corrosion, making them safer when connected with devices designed for copper.
However, it’s essential to monitor for oxidation of the aluminum core, which can still occur and potentially lead to poor connectivity and increased contact resistance over time. Proper installation and regular inspections ensure the longevity and safety of electrical systems using CCA wire.
Pros of Using Copper Clad Aluminum Wire
CCA wire offers several significant advantages over solid copper wire, making it a favorable choice for various electrical applications. Its lower production costs, lightweight nature, and versatility are among the key benefits that make it an attractive option for both residential and commercial installations.
Cost Savings
One of the most compelling benefits of CCA wire is its cost savings. Typically, CCA wire costs 30-50% less than solid copper wire, making it a more economical choice for many projects. The affordability stems from the significant amount of aluminum used, which is less expensive than copper, reducing overall material costs.
The cost benefits extend beyond just the purchase price. CCA wires are less expensive to transport and install due to their reduced weight, despite being priced higher per unit weight than solid copper. This makes CCA wire attractive for large-scale projects where budget constraints are a primary concern.
Lightweight Nature
Another significant advantage of CCA wire is its lightweight nature. Being approximately 70% lighter than solid copper, CCA wire is much easier to handle during installation, reducing physical strain on workers. This ease of handling is beneficial in applications requiring large amounts of wire, simplifying the installation process and speeding up project timelines.
Additionally, the lower density of CCA wire contributes to reduced transportation costs. This makes it more practical for large projects and helps reduce the overall environmental impact associated with transporting heavy materials.
Versatility
CCA wire’s versatility stands out. Its unique properties make it suitable for a wide range of electrical applications, from construction and audio systems to telecommunications and automotive industries. Combining copper’s conductivity and aluminum’s lightweight nature provides significant advantages in performance and handling.
The versatility of CCA wire allows it to be effectively used across multiple industries, benefiting from cost efficiency and lightweight properties. This practicality further cements its place as a valuable alternative to solid copper wire.
Cons of Using Copper Clad Aluminum Wire
Despite its many benefits, CCA wire does have some notable drawbacks. These include lower mechanical strength, reduced conductivity, and potential risks related to corrosion and oxidation.
These disadvantages are crucial for making informed decisions about when and where to use CCA wire.
Mechanical Weakness
One of the primary disadvantages of CCA wire is its lower mechanical resistance compared to solid copper wire. The aluminum core, while lightweight, lacks the tensile strength of copper, making CCA wire more susceptible to physical damage. This is crucial in applications where the wire may be subject to bending, pulling, or other mechanical stresses.
If the conductors in CCA cables break, the cable must be pulled again, leading to increased labor and material costs. This susceptibility to damage requires careful handling and installation to avoid issues.
Lower Conductivity
Another significant drawback of CCA wire is its lower electrical conductivity compared to pure copper conductors. Cables with CCA conductors cannot be used over long distances due to their reduced conductivity, which results in greater packet loss and retransmission of data during signal transmission. This can be critical in applications where reliable and efficient power transmission is essential.
The reduced conductivity also means that CCA wire generates more heat when current flows through it, leading to potential issues with overheating and energy loss. This makes it less suitable for high power and long-distance transmission applications.
Corrosion and Oxidation Risks
Corrosion and oxidation are also concerns with CCA wire. Aluminum has a higher reactivity compared to copper. When exposed to air, it undergoes oxidation. This oxidation can lead to disconnections in CCA cables, causing potential malfunctions and even fire risks. It’s essential to monitor and maintain connections properly to mitigate these risks.
CCA properties present a greater risk of malfunction and fire compared to solid copper wire, making it crucial to consider these factors in critical applications.
How to Manufacture Copper Clad Aluminum Wire
1. Material Preparation
Aluminum Core Treatment:
- Select high purity aluminum rod (such as 1060 or 1070 aluminum alloy), the diameter is selected according to the demand of the finished product.
- Surface treatment: Remove the oxidized layer by alkaline washing (e.g. NaOH solution), then activate the surface by acid washing (nitric acid or sulfuric acid), and finally wash and dry.
Copper selection:
- Use oxygen-free copper (e.g. TU1 or TU2), made into thin strips or tubes, the thickness of which is usually 10%-15% of the diameter of the aluminum core.
2. Cladding forming
Through the copper strip uncoiling, copper strip wrapped aluminum core welding rolling, so that the copper layer and aluminum core tightly combined
3. Drawing processing
Use multi-pass drawing machine to gradually reduce the diameter of the wire, control the amount of deformation (about 15-20% in a single time), to avoid cracking.
4. Annealing Process
- Intermediate annealing: carried out in the middle of the drawing process (300-400 ℃, time 30-60 minutes), to eliminate work hardening.
- Finished product annealing: adjust the temperature according to the final performance requirements to avoid excessive diffusion of copper and aluminum.
5. Quality Control and Inspection
- Conductivity Test:
Measurement of resistivity using the four-probe method to ensure compliance with standards (e.g. IEC 60228). - Bonding strength test:
Peeling test: Apply force to peel off the copper layer, the peeling force is required to be ≥1.5 N/mm.
Torsion test: Observe whether the interface is cracked or not after the wire is twisted by 180°. - Microstructure analysis:
metallurgical microscope to observe the copper-aluminum interface to ensure that there are no voids or oxidation inclusions. - Corrosion Resistance Test:
Salt Spray Test (e.g. ASTM B117) to assess corrosion resistance and apply antioxidant coating if necessary.
Get the best CCA complete line solutions
Nowadays, most of the companies in the market can only provide a part of CCA production line, some can provide wrapping machine, some can provide drawing machine. NEW VICTOR company, as a manufacturer with thirty years’ experience, can provide the whole line solution and complete set of equipment for CCA. Contact now to start your successful project!
Proven Performance and History
Copper-clad aluminum wire has a proven track record, with over five decades of use in residential applications, demonstrating consistent reliability and safety. Its design effectively addresses the termination issues found in traditional aluminum wiring, ensuring secure and durable connections. This long history underscores the wire’s durability and performance, making it a trusted choice for many applications.
Manufacturers of CCA wire have successfully combined the benefits of both copper and aluminum, creating a product that offers similar performance to solid copper wire but at a reduced cost. This combination ensures that CCA wire remains a reliable and cost-effective solution, mitigating common issues associated with traditional wiring methods.
Summary
In summary, Copper Clad Aluminum wire presents a compelling option for various electrical applications, offering significant cost savings, lightweight properties, and versatility. However, it is essential to consider its mechanical weaknesses, lower conductivity, and potential risks related to corrosion and oxidation. By understanding both the benefits and drawbacks, you can make informed decisions about the best use cases for CCA wire, ensuring optimal performance and safety in your projects. Whether for residential, commercial, or industrial use, CCA wire continues to prove its worth as a reliable and efficient alternative to solid copper wire.
