Steel tube mill machine are specialized machines used to produce tubes and pipes from flat metal strips. These tubes are vital in industries like construction, automotive, aerospace, and energy, where they form essential structural and functional components. In this article, we will delve into “what is a tube mill used for” across different sectors, their manufacturing processes, and the varieties of tubes they produce.
Overview of Steel Tube Mills
At their core, tube mills are sophisticated machines designed to produce tubes and pipes from flat metal strips. This transformation begins with uncoiling and straightening the metal strip to ensure uniformity, creating the foundation for precise tube formation. The magic of tube mills lies in their ability to convert these flat strips into tubular forms through a series of carefully orchestrated processes.
Tube mills produce pipe by continuously rolling a strip of material until the edges meet for welding. Uncoiling and straightening the metal strip and flat strip is the initial step, preparing it for subsequent stages. From there, the steel strip passes through multiple rolls that gradually shape it into a tube while maintaining specific dimensions. This intricate process ensures that the final product meets the desired specifications and tolerances.
Tube mills are versatile machines capable of producing a wide range of tubular products, including round, oval, and custom-shaped tubes. These tubes serve various applications in different industries, showcasing the adaptability and precision of steel pipe mill technology. Whether for construction frameworks, automotive parts, or high-pressure pipes, tube mills play a crucial role in manufacturing the essential components of modern infrastructure, particularly in a steel tube mill line.
Industrial Applications of Tube Mills
The versatility of tube mills is evident in the diverse industries they serve. In the construction industry, square tubes produced by tube mills provide structural integrity for buildings and infrastructure. These tubes are essential for creating robust frameworks that can withstand significant loads and stresses.
In the automotive and aerospace industries, tube mills produce steel pipes, fuel lines, and other critical components that must endure high pressures and harsh operating conditions. The precision and reliability of tube mills make them ideal for manufacturing parts that ensure the safety and efficiency of vehicles and aircraft.
The energy sector also relies heavily on steel tube mills. Corrosion-resistant metal pipes produced by tube mills are vital for chemical and oil industries, where they are used in high-pressure applications and environments exposed to corrosive substances.
From construction to automotive and energy, tube mills are indispensable machines that support various industries with their ability to produce high-quality, reliable tubes and pipes.
Manufacturing Process in Steel Tube Mills
The manufacturing process in steel tube mills is a marvel of modern engineering, involving multiple stages to convert raw materials into finished tubular products.
This process starts with:
Preparation of raw materials
Forming
Welding
Sizing
Cutting stages
Each step is crucial to ensure that the final product meets the stringent quality standards required by various industries.
At the heart of the manufacturing process are the forming and welding stages, where the metal strip is shaped into a cylindrical form and welded to create a strong, seamless tube. The quality of the weld seam is critical in ensuring that the edges of the steel strip meet and fuse together properly, resulting in strong and resistant steel pipes. Following this, the tubes are sized and cut to the desired dimensions, ensuring they are ready for their specific applications.
Raw Materials and Preparation
Tube production starts with selecting and preparing raw materials. Steel and stainless steel pipe strips are the primary raw materials used in tube mills. These materials undergo rigorous quality checks to ensure they meet the required chemical composition and mechanical properties.
After verification, steel coils are trimmed and prepared for manufacturing. This preparation stage is crucial as it sets the foundation for the subsequent forming and welding processes, ensuring that the material is of the highest quality and ready for transformation into tubular forms.
Forming and Welding Process
Forming in tube mills involves gradually shaping the metal strip into a tubular form using upper and lower shaft rollers. This meticulous process, carried out by a steel tube mill machine, ensures that the strip maintains its structural integrity while being transformed into a tubular shape.
Once the strip is formed, the high frequency induction welding process begins. High-frequency electric resistance welding techniques are commonly used to join the edges of the strip, creating a strong welded seam. The alignment of the edges is crucial, as any misalignment can compromise the quality of the weld. At the weld station, the aligned edges are fused together, resulting in a seamless tube ready for the next stages of production.
Welding is a critical step in tube manufacturing, ensuring the final product’s structural integrity and durability. Advanced welding techniques enable the production of high-quality welded tube that meet the stringent requirements of various industries.
Sizing and Cutting
After the welding process, the newly formed tubes undergo sizing through tube passes to achieve precise dimensions. This is accomplished using specialized rollers that shape the tubes to the required specifications. The sizing process is essential to ensure that the tubes meet the exact dimensions needed for their intended applications.
Following sizing, the tubes are cut to the desired length. The cutting process is executed with precision, ensuring each tube meets its specific application requirements. When the required size cannot be achieved directly from the mill, a cold drawing process may be used to reach the desired dimensions.
Types of Tubes Produced by Tube Mill Machinery
Tube mills produce pipe by continuously rolling a strip of material until the edges meet for welding, and they are capable of producing a wide variety of tubes, each designed to meet the specific needs of different industries. These include round, oval, and custom-shaped tubes that serve a range of applications from construction to automotive and beyond.

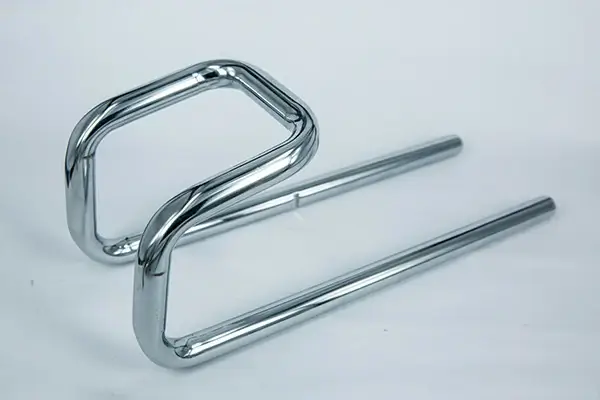

In the construction industry, steel tubes produced by tube mills are essential for building frameworks, scaffolding, and railings, providing the necessary strength and durability. The automotive and aviation sectors utilize tubes for parts like exhaust systems and fuel lines, where high-pressure resistance is crucial.
Tube mills also produce pipes for the oil and gas sector, including drilling pipes and casings for wells, designed to withstand harsh environments and rigorous specifications. Additionally, the furniture industry benefits from tube mills, using their products for both structural strength and aesthetic purposes, while the tube and pipe mill contributes to the overall production process.
Quality Control in Tube Mills
Quality control is crucial in tube production, ensuring the final products meet the highest standards of quality and reliability. Tube mills implement various control measures, including non-destructive testing, visual assessments, and mechanical testing to identify any defects.
Advanced sensors and automated systems are integrated into modern steel tube mills to maintain strict quality control. These technologies allow for real-time monitoring and immediate adjustments, reducing the likelihood of human error and enhancing the consistency of the final products. This ensures that the tubes meet the specified dimensions and tolerances required by various industries. Inspecting the weld seam during quality control is essential to ensure that the edges of the steel strip meet and fuse together properly, resulting in strong and resistant steel pipes.
Finishing processes play a significant role in quality control, ensuring the tubes have smooth surfaces and meet the required tolerances for their specific applications. These processes are particularly important in industries such as food and pharmaceuticals, where surface quality is crucial.
Advantages of Using Tube Mills
Tube mills offer numerous advantages, making them indispensable in modern manufacturing. One of the key benefits is the ability to customize pipe attributes to meet the specific needs of different industries. Customization enables manufacturers to produce tubes with precise dimensions and properties tailored for specific applications.
Additionally, tube mills are designed for high efficiency and simple maintenance, reducing downtime and enhancing usability. Their ability to quickly produce a wide range of tubes makes them a valuable asset in a variety of industrial environments.
Finishing Processes for Tubes
Steel pipes finishing processes in tube mills ensure the final products meet industry standards and customer requirements. These processes involve cleaning, heat treatment, straightening, and pickling. Cleaning and pickling remove surface impurities and scales from the tubes, ensuring smooth surfaces and optimal performance.
These finishing processes are the final stage of tube manufacturing, ensuring the tubes meet the required tolerances and desired surface quality. This is crucial for applications where the appearance and surface finish are important.
Summary
Tube mills are an integral part of modern manufacturing, playing a crucial role in producing high-quality tubes and pipes for various applications. From the initial preparation of raw materials to the final finishing processes, each step is meticulously designed to ensure that the final products meet stringent quality standards.
The continuous advancements in tube mill technology, coupled with the industry’s focus on quality control and efficiency, ensure that tube mills will continue to be a vital part of industrial manufacturing. The innovations in automation and software integration further enhance the capabilities of tube mills, making them more efficient and reliable than ever before.
