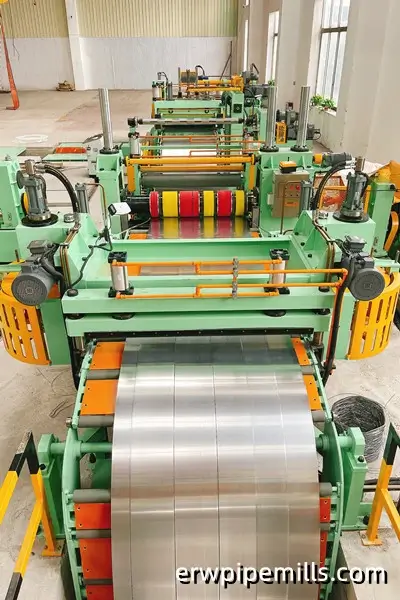

A steel coil slitting machine cuts wide steel coils into narrower strips. The process includes loading the coil, uncoiling, straightening, slitting, and recoiling. This guide will explain each step in detail, providing a comprehensive understanding of how steel coil slitting machine work.
Table of Contents
Loading the Steel Coil
The first critical step in the steel slitting process is loading the steel coil onto the machine. This task is handled by a hydraulic entry coil car, which efficiently lifts and moves the coils into position. Equipped to handle up to 30 tons, the hydraulic car ensures that even the heaviest coils are loaded safely and smoothly, minimizing risks and enhancing operational efficiency.
For additional safety, crane systems often work with the hydraulic car. These cranes place the steel coils onto the decoiler, which unwinds the coil. Proper loading enhances both safety and efficiency of the entire slitting line. A well-loaded coil leads to smooth, precise operations, reducing errors and downtime.
Uncoiling the Steel Coil
Once the coil is securely loaded, the next step is uncoiling. The decoiler, a vital component of the steel slitting line, takes center stage here. By unwinding the steel coil, the decoiler prepares the material for subsequent processes. Operating with remarkable efficiency, this machine surpasses manual methods, ensuring a steady flow of material into the coil slitting machine.
Keeping constant tension during uncoiling is vital for desired results. Rollers and guides facilitate smooth unrolling, preventing deformation and ensuring correct feeding of sheet metal into the metal slitting machine. This controlled process is essential for maintaining the integrity and quality of the material as it moves through the slitting line.
Straightening the Steel Coil
Before the steel coil reaches the slitting head, it must be straightened to ensure high-quality results. The straightener, or precision leveler, plays a crucial role in this stage. Flattening the steel sheet, the straightener eliminates defects like camber and wavy edges that could compromise the final product’s quality.
This equipment is particularly vital for materials over 2 mm in thickness, where even minor imperfections can lead to significant issues in the subsequent stages. Using a straightener ensures the sheet metal is flat and defect-free, ready for precise slitting.
Slitting Process
The heart of the steel slitting process lies in the coil slitting machine itself. Proper alignment of the steel coil ensures precision in cutting. Rotary slitting knives cut the wide master coil into multiple narrower coils, known as mults. These mults can be tailored to specific widths and weights, meeting the diverse needs of various industries.
During the slitting operation, the knives cut through the material while rubber stripper rings assist in pulling it through the machine. This ensures a clean cut and smooth edges, which are critical for the quality of the final product. The role of the slitter head is pivotal in maintaining the accuracy and consistency of the slitting process.
After slitting, the performance of the recoiling unit is crucial in determining the overall quality of the product. Proper tension during recoiling prevents issues like strip damage and ensures that the slit coils are wound neatly and consistently, ready for the next stage in their journey.
Managing Scrap
Managing scrap is a critical aspect of the steel slitting process. The scrap winder, a standard unit on coil slitting machines, addresses the common issue of corner scraps and mismatched coil widths.
The structure of the winder consists of several components. These include a base, a shaft, a plate for scrap material, a friction wheel, a supporting wheel chain, and a motor decelerator. This setup collects and manages scraps, contributing to waste reduction and cost efficiency. Minimizing material waste leads to significant cost savings and environmental benefits.
Recoiling the Slit Strips
Recoiling the slit strips is the final step in the steel slitting process. The recoiler wraps the slit coils back into a coiled form, making them easier to handle and ship.
Multiple recoilers can operate simultaneously to handle different strip widths, ensuring efficiency and flexibility. Tension control features in the recoilers ensure consistent winding of the strips, preventing issues like strip damage and maintaining the quality of the final product.
Types of Steel Coil Slitting Machines
Steel coil slitting machines come in three primary types: light duty, medium duty, and heavy duty. Each type is designed to handle different material thicknesses and production volumes, catering to a wide range of industrial needs.
Light Duty steel coil Slitting Machines
Light duty slitting machines are ideal for small-scale operations and are specifically designed to process thinner materials, typically less than 2 mm. These machines are perfect for industries where precision and scale are crucial.
Medium Duty steel Slitting Machines
Medium duty slitting machines are versatile and can handle material thickness ranging from 0.5 mm to 8 mm. These machines are suited for various industries, providing the flexibility to process different slit widths and thicknesses efficiently.
Heavy Duty steel Slitting Machines
Heavy duty metal slitting machines are built for high-volume production scenarios and can handle thick materials, including steel thickness ranging from 2 mm to 20 mm. These machines are essential for industries that require robust and durable equipment to manage heavy and wide coils.
Advantages of Using Steel Coil Slitting Machine lines
The use of steel coil slitting machine lines offers numerous advantages:
They significantly boost efficiency by optimizing material usage
They reduce waste
They enhance productivity
They ensure precision and quality in cutting large rolls of metal into narrower coils
Additionally, these machines provide uniform widths and smooth edges, which are vital for precision-driven industries. They allow for precise customization of various widths and thicknesses as per client specifications, resulting in improved yields and reduced waste.
Choosing the Right Slitting Machine Manufacturer
Selecting the right slitting machine manufacturer is crucial for achieving high-quality production and machine reliability. Key factors to consider include precision, durability, and the availability of technical support. These factors directly influence the efficiency and effectiveness of the slitting operation.
Choosing the right manufacturer optimizes performance and minimizes downtime, ensuring the slitting process runs smoothly and efficiently. This decision can significantly impact the product quality and the success of your manufacturing operations.
NEW VICTOR company is a professional manufacturer of slitting machine and carbon steel tube mill machine, which is famous for its high quality equipments and perfect after-sales service all over the world. This company will customize the suitable production line according to the customer’s requirements and provide door-to-door installation and commissioning service. At the same time, the company has agents all over the world, to ensure the stable operation of the equipment for a long time.
Summary
The steel slitting process is a complex but essential part of modern manufacturing. From loading the initial coil to managing scrap and recoiling the finished strips, each step is crucial for ensuring quality and efficiency. By understanding the intricacies of this process, manufacturers can optimize their operations and achieve superior results.
End with a thought-provoking statement or call to action, encouraging readers to consider the importance of selecting the right equipment and partners for their slitting needs.
Frequently Asked Questions
What is the role of a hydraulic entry coil car in the slitting process?
The hydraulic entry coil car is essential in the slitting process as it safely lifts and moves steel coils for loading onto the decoiler, facilitating efficient handling of heavy materials.
How does the uncoiler contribute to the slitting process?
The decoiler plays a crucial role in the slitting process by unwinding the steel coil while maintaining constant tension, which prevents deformation. This ensures a consistent and accurate slitting operation.
Why is the straightening process important before slitting?
The straightening process is essential before slitting as it removes defects and guarantees a flat material, significantly impacting the quality of the final product.
What are the main types of steel coil slitting line machines?
The main types of steel coil slitting machines are light duty, medium duty, and heavy duty, tailored to accommodate various material thicknesses and production needs. Each type serves specific requirements based on operational scale and material handling.
What are the benefits of using a scrap winder?
Using a scrap winder effectively reduces waste, enhances cost efficiency, and supports environmental sustainability by managing scrap material more effectively.
