Choosing the right steel pipe is key for any project. Here, we explain 10 types of steel pipe and their primary uses to help you select the best one.
Steel pipes are a crucial component in various industries, including construction, oil and gas, and water distribution. These versatile pipes are made from a variety of materials, such as stainless steel, carbon steel, and galvanized steel, each offering unique benefits. The nominal pipe size (NPS) and schedule are essential specifications used to determine the size and wall thickness of steel pipes. The schedule indicates the wall thickness, which can vary to meet different pressure and structural requirements.
Steel pipes are manufactured using different processes, including welding and seamless production. These methods produce pipes with varying mechanical properties and corrosion resistance, making them suitable for a wide range of applications. For instance, stainless steel pipes are known for their excellent corrosion resistance, while carbon steel pipes are valued for their strength and cost-effectiveness. Galvanized steel pipes, coated with a layer of zinc, offer enhanced protection against corrosion, making them ideal for outdoor and underground use.
Understanding the different types of steel pipes and their specifications is essential for selecting the right pipe for your project. Whether you need pipes for high-pressure environments, structural applications, or water distribution systems, there is a steel pipe that meets your needs.
Table of Contents
Carbon Steel Pipes
Carbon steel pipes are a cornerstone in the world of steel pipes, made primarily from iron and carbon with a carbon content of up to 2.5%. Known for their high tensile strength and durability, these pipes are designed to withstand significant stress and strain, making them highly reliable for various industrial applications.
Classified based on the amount of carbon, level of impurities, and additional alloying elements, carbon steel pipes are governed by standards such as ASME B36.10M, which outline their dimensions and sizes using non-dimensional numbers. This ensures consistency and quality, making carbon steel a common type of pipe used worldwide. Understanding pipe sizes, classified based on nominal pipe size (NPS) and other standard measurements, is crucial for accurately identifying and applying these pipes in various applications.
Applications of Carbon Steel Pipes
Carbon steel pipes are indispensable in the oil and gas industry, chemical processing, and power generation sectors. Their strength and durability make them perfect for transporting oil and gas under high pressure and harsh conditions. Carbon steel pipes are also suitable for applications involving high temperatures due to their strength and durability.
Additionally, these pvc pipes are frequently used in structural applications such as building frameworks, bridges, and various support structures for structural use. Their versatility extends to construction materials, tools, and automotive components, showcasing their wide-ranging utility in numerous industries.
Stainless Steel Pipes
Stainless steel pipes are renowned for their excellent corrosion resistance, thanks to the chromium content (10.5%-30%) that forms a protective layer on the surface. This makes them highly suitable for environments that are prone to rust and corrosion. Elements like nickel and molybdenum further enhance their properties, providing additional strength and resilience.
These pipes are not only functional but also aesthetically pleasing, which is why they are commonly used in architectural applications. Their combination of beauty and durability makes them a preferred choice in various industries and fittings. Various sizes and weights of stainless steel pipes are often available in stock, helping customers choose the right options for their projects.
Applications of Stainless Steel Pipes
Stainless steel pipes are essential in the food processing, pharmaceuticals, water treatment, and marine industries due to their superior corrosion resistance. In kitchens, they are commonly used in utensils and cutlery because stainless steel pipe withstands exposure to moisture and acids.
Stainless steel pipes are essential in the food processing, pharmaceuticals, water treatment, and marine industries due to their superior corrosion resistance. In kitchens, they are commonly used in utensils and cutlery because stainless steel pipe withstands exposure to moisture and acids.
Being rust-resistant, they are perfect for marine applications, where saltwater exposure is constant. Whether used indoors or outdoors, stainless steel pipes are corrosion resistant and resist corrosion, making them versatile for many applications. Modern techniques have made it easier to install stainless steel pipes, enhancing their practicality in various applications.
Alloy Steel Pipes
Alloy steel pipes stand out due to their enhanced mechanical properties and resistance to wear and corrosion. By combining carbon steel with alloying elements like manganese, nickel alloys, and silicon, specific properties are achieved that are not found in standard carbon steel.
Different pipe schedules correspond to varying wall thicknesses, which affect pressure resistance. This makes them suitable for demanding environments where strength, durability, and titanium are paramount.
Applications of Alloy Steel Pipes
High-pressure industries like oil and gas frequently use alloy steel pipes, making them ideal for refineries and power generation. Combining carbon steel with manganese and nickel enhances mechanical properties, offering superior wear and corrosion resistance.
They are also well-suited for high-pressure and high-temperature applications, often found in oil and gas pipelines and other demanding environments. Their ability to withstand extreme temperatures makes them invaluable in various industrial applications. Understanding pipe schedules is crucial for selecting the right pipe sizes and weights based on standardized specifications.
Galvanized Iron Pipes
GI pipe full form galvanized iron pipe, receive a coating of zinc. The coating protects against corrosion. Hot-dip and electro-galvanizing methods significantly extend the pipes’ lifespan, especially in rust-prone environments. These galvanized pipe typically have threaded connections, making them easy to assemble and disassemble.
Introduced as an alternative to lead pipes, polyvinyl chloride plastic (PVC) can last for decades, demonstrating durability and reliability in suitable environments.
Applications of Galvanized Steel Pipes
Galvanized steel pipes are ideal for water supply systems and other outdoor and industrial applications due to their corrosion resistance. They are also commonly used in the construction of fences, railings, and scaffolding, providing structural integrity and longevity.
Their durability in harsh environments makes them popular for various applications, ranging from different types of low cost residential water systems to large-scale industrial projects. Additionally, acrylonitrile butadiene styrene (ABS) is another material commonly used in drain, waste, and vent piping applications due to its versatility and ease of installation.
Seamless Steel Pipes
Seamless steel tubes are made from solid steel billets through the processes of piercing, hot rolling or cold drawing, with no welds throughout, combining high strength and uniformity. They are mainly categorized into hot rolled tubes (with larger wall thicknesses, used in mechanical structures) and cold drawn tubes (with precise dimensions, suitable for hydraulic systems). Its weldless feature avoids the risk of cracking and can withstand higher pressures and extreme temperatures, and is widely used in high-pressure boilers, oil and gas extraction, chemical equipment and precision instrument components.
Seamless steel pipe materials are mainly carbon steel, alloy steel and stainless steel, and the mechanical properties are optimized through heat treatment. Compared with welded pipe, its production cost is high and the cycle time is long, but it has better pressure resistance, impact resistance and corrosion resistance, especially suitable for conveying flammable and explosive media or complex working conditions. The production process is subject to ultrasonic flaw detection, eddy current detection and air pressure test to ensure zero defects.
Applications of Seamless Steel Pipes
Seamless steel pipes are extensively used in high-pressure industries such as oil and gas, chemical processing, boilers, and hydraulic systems. Their ability to withstand extreme pressures makes them indispensable in these sectors, ensuring safety and efficiency in operations within the pipe industry. Understanding the weight categories of seamless steel pipes is crucial for ensuring proper usage in high-pressure applications.
Welded Steel Pipes
Welded Steel Pipes are steel pipes made by bending steel plates or strips into shape and then by welding process. Compared with seamless steel pipe, welded steel pipe has the advantages of low cost, high production efficiency, and can produce large-diameter pipe.
Welded steel pipe is divided into two categories: seamless welded pipe and spiral welded pipe. seamless welded pipe adopts high-frequency resistance welding (ERW) or submerged arc welding (LSAW) process, which is suitable for small and medium-diameter pipes or thick-walled large-diameter pipelines; spiral welded pipe is formed by spiral curling, with a long weld seam but with high flexibility, which is suitable for large-diameter and thin-walled scenes.
Applications of Welded Steel Pipes
Compared with seamless steel pipe, welded pipe is slightly less strong, but with economy and flexibility of specifications, it has become the first choice for transporting water, gas, oil and supporting structures.
Selection needs to consider the pressure, medium and environment: ordinary scenes can choose ERW straight seam pipe, high-pressure corrosive environment is suitable for LSAW or spiral welded pipe, and follow the API, ASTM or national standards and other specifications. Welded steel pipe drives infrastructure, energy and industrial development in a cost-effective manner, and is an indispensable basic material for modern engineering.
Electric Resistance Welded (ERW) Steel Pipes
ERW pipe full form electric resistance welded pipe, ERW is a specialized welding process that uses heat generated by an electric current to join metal parts. The process includes low or high frequency resistance welding, depending on the specific requirements of the application.
ERW Pipe Manufacturing Process
The complete manufacturing process include uncoiling and flattening, forming welding and sizing, flying saw cutting, steel pipe stacking, etc. Read another article to learn more about the production process of ERW tubes.
Applications of ERW Steel Pipes
ERW steel pipes are used in a variety of applications, including oil and gas transport, water systems, structural applications, and automotive chassis components. Their strength and reliability are essential for safely and efficiently transporting hydrocarbons in the oil and gas industry. Modern techniques have made it easier to install ERW steel pipes, enhancing their practicality in various applications.

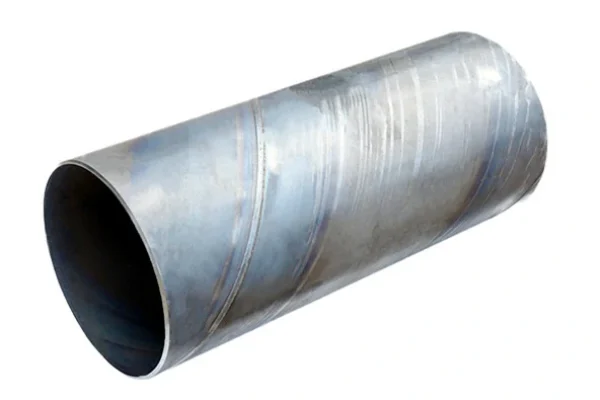

Spiral Welded Steel Pipes
Spiral welded steel pipes are characterized by their large diameter, high strength, and flexibility. Manufacturing involves spirally winding and welding steel coils, creating a strong and flexible product.
Applications of Spiral Welded Steel Pipes
Spiral welded steel pipes are commonly used in water systems and wastewater management due to their ability to handle high loads. Their structural strength and symmetry suit them well for oil and gas pipelines, where resisting buckling is critical. They are also suitable for applications involving high temperatures due to their strength and durability.
Longitudinally Submerged Arc Welded (LSAW) Steel Pipes
LSAW pipes are made by bending steel plates, which are then welded along the longitudinal axis. Known for high strength and a smooth interior surface, these pipes handle high-pressure and high-temperature environments.
The pipe schedule is crucial in defining the wall thickness and pressure resistance of LSAW steel pipes, ensuring they meet the necessary standards for structural integrity and fluid transport under pressure.
Applications of LSAW Steel Pipes
LSAW steel pipes are widely used in oil and gas pipelines and water transmission applications. Their strength and reliability make them valuable structural components in various industries. Understanding the weight categories of LSAW steel pipes is crucial for ensuring proper usage in high-pressure applications.
Double Submerged Arc Welded (DSAW) Steel Pipes
DSAW pipes are welded on both the inside diameter and outside seams, enhancing overall strength and durability, including considerations of wall thickness and actual outside diameter. This dual seam welding process enables them to withstand high pressures and stresses, ideal for large-diameter applications.
Applications of DSAW Steel Pipes
DSAW steel pipes are mainly used in applications that require high pressure and high stress. These include oil and gas pipelines, water transmission, and various structural uses. Their strength and reliability are indispensable in demanding environments. Modern techniques have made it easier to install DSAW steel pipes, enhancing their practicality in various applications.
Summary
Steel pipes are critical to modern infrastructure, and understanding the different types and their applications is crucial for selecting the right pipe for the job. From carbon steel pipes to specialized pipes like ERW and DSAW, each type has unique properties that make them suitable for specific applications. Accessories like pipe fittings are also essential in ensuring proper installation and functionality of steel pipes.
By exploring the various types of steel pipes and their uses, we gain a deeper appreciation for the role they play in our daily lives and industries. This knowledge empowers us to make informed decisions, ensuring efficiency, safety, and longevity in our projects.
